CPVC (Cellular Polyvinyl Chloride) Products
Imagine intricate interior and exterior trim, beaded ceiling and profiles that keep their shape, require very little maintenance and never need painting - unless you wish to color match with other millwork, windows, doors and siding.

CPVC is manufactured by using a heated free foam extrusion process which creates tiny air bubbles within the shape, resulting in a density less than half that of solid PVC. When cooled after extrusion, the material forms a smooth, hard surface that resists dents and scratches.



Advantages of CPVC Trim Boards and Beaded Ceiling

  • Rot and Decay Proof
  • Insect and Termite Proof
  • Water and Moisture Proof - May be Installed Above or Below Grade
  • Dent and Scratch Resistant
  • Easy to Cut, Rip, Route, Screw, Staple and Nail
  • Very Low Maintenance
  • Strong and Durable

Storage & Handling
CPVC products are flexible and tend to conform to the surface on which they are stored. Storage on flat level surface is recommended. Handle with care to avoid damage.

Application
products should not be used in structural applications. They should only be used in non-load bearing situations.

Installation
All types of saws may be used. When cutting to a required length or width use a sharp blade-preferably carbide tipped. Very aggressive blades with very few teeth may leave some rough edges. Do not use fine tooth blades. Rather, use blades with a medium number of teeth.

Fastening
products may be fastened with nails, screws and glues. Hot dipped galvanized or stainless steel fasteners are recommended. Do not use ring shank nails or fine threaded screws. When air and material temperature is under 40 F, pre-drilling is required.

Ship Lap or Square End Boards
All Boards are available with Ship Lap Both Ends or Square Ends. When joining long runs end to end, nail or fasten through the ship laps on both boards. This will minimize expansion and contraction of both boards.

Painting
Although does not require painting, it can be painted without any particular surface preparation. However, make sure all products are clean and dry before painting. If paint is applied, 100% latex or 100% acrylic latex exterior paint - with a urethane additive-is recommended. As always, follow the paint manufacturers instructions and technical details. can be painted any color but remember dark colors absorb heat and can cause more product expansion than painting with medium or light colors.





CPVC (Cellular Polyvinyl Chloride)
Products Offered-Matt White

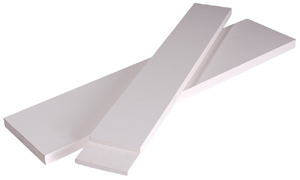

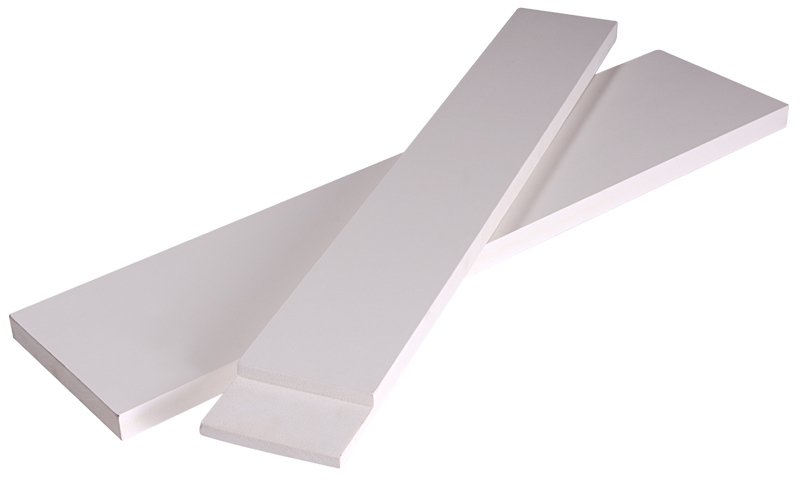

Trim Boards -Standard ALS Widths-Smooth 4 Sides or Woodgrain 1 Face

  • 1 x 4 x 18'
  • 1 x 5 x 18'
  • 1 x 6 x 18'
  • 1 x 8 x 18'
  • 1 x 10 x 18'
  • 1 x 12 x 18'

    Ship Lap or Square Cut Ends
    UV inhibitors added
    Other Thickness, Widths, Pattern Stock, Profiles and Lengths as Specified by Customer

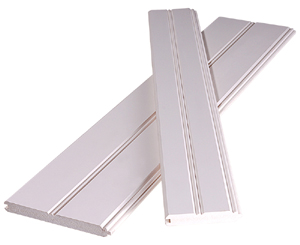

T&G Beaded Ceiling-EB&CB/V2E

  • 1 x 4 (9/16" x 3 1/4") x 18'
  • 1 x 6 (1/2" x 5 1/2") x 18' (Also available in 23/32")
  • Weight: 1 x 4 beaded ceiling - approximately 1188lbs/MBM
  • Weight: 1 x 6 beaded ceiling - approximately 1195lbs/MBM
  • UV inhibitors added

Sheets/Panels-Smooth 4 Sides or Woodgrain 1 Face

  • Available-23/32" Thick-Up to 48" Wide and up to 20' Long
  • Weight: Boards-between 1625lbs and 1775lbs/MBM
  • UV inhibitors added


CELLULAR STRYENE POLYMER

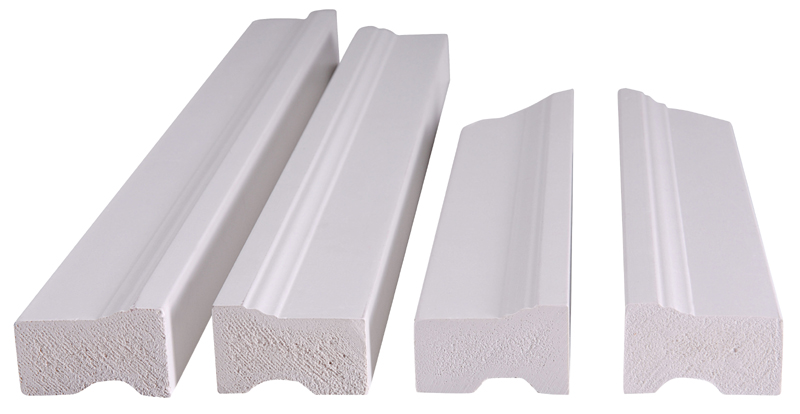

WM180 Brick Mould

  • Pre-finished White Cellular Core Styrene Polymer
  • UV Inhibitors Added
  • The Economical Alternative to Wood & PVC Brick Mould
  • Waterproof, Rot & Insect Resistant
  • Easy to Cut, Staple, Screw or Nail - Pre-drilling not Required
  • Can be Painted any Color - No Special Preparation Required
  • Light Weight - Stiff like Wood

  • Standard Lengths: 7', 8', 10', 14', 16', 17' & 18'
  • Other Lengths Available
  • Pre-cut & Mitered Sets
  • To Customer Specifications

Download PDF brochure
Download PDF MSDS of Cellular Stryene Polymer
Download PDF MSDS of CPVC
Downdload Century Trim - Limited Warranty
